The CamScripter App is an application running inside the camera on an Axis Camera Application Platform (ACAP) and can automate all CamStreamer applications.

CamScripter App functionality can be controlled using API once the application is installed and licensed.

Documentation of our library and examples of the app can be found on our GitHub.

Package format of micro-app for CamScripter App

CamScripter package is a .zip file which contains all manifest, node.js scripts, static files for UI (images, frontend js, css,...).

File manifest.json

The manifest.json is required in each package. The file contains a json object with the following attributes:

package_name, package_menu_name, package_version, vendor, required_camscripter_version, ui_link is link to UI (optional)

Main script

The main.js is required in each package. This is the node.js script which is started once the package starts.

Environment variables

Each micro application running in CamScripter App environment has access to the following variables:

HTTP_PORT see chapter HTTP Proxy
HTTP_PORT_PUBLIC proxy without authorization. See chapter HTTP Proxy
INSTALL_PATH
PERSISTENT_DATA_PATH folder which is suitable for permanent data. All data survive restart of the camera or package upgrade
PACKAGE_NAME

Libs

All required js libraries should be part of the package.

Package configuration

The PackageConfigurations parameter is used to enable or disable packages. Value is in JSON format.

Example:

  {"package_name":{"enabled": true}}

Install package

Basic cURL usage:

curl --user USER:PASS -F file=PACKAGE_NAME http://IPADDR[:PORT]/local/camscripter/package/install.cgi

where

USER is an user name. E.g. root
PASS is a password . E.g. pass
IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5
PACKAGE_NAME is the name of the package on your computer. E.g. clock.zip

Example:

    curl --user root:pass -F file=@clock.zip http://127.0.0.1:52520/local/camscripter/package/install.cgi

Remove package

http://IPADDR[:PORT]/local/camscripter/package/remove.cgi?package_name=PACKAGE_NAME

where

IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5
PACKAGE_NAME is the name of the package that you want to remove. E.g. clock

Example:

    http://127.0.0.1:52520/local/camscripter/package/remove.cgi?package_name=clock

List all installed packages

http://IPADDR[:PORT]/local/camscripter/package/list.cgi

where

IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5

Response example of list action in JSON format:

[{
  "package_name": "doorController",
  "package_menu_name": "Door Controller",
  "package_version": "1.1.1",
  "vendor": "Camstreamer s.r.o.",
  "required_camscripter_version": "1.2.3",
  "ui_link": "/local/camscripter/package/doorController/index.html"
}, {
  "package_name": "clockAnalog",
  "package_menu_name": "Analog Clock",
  "package_version": "1.0.1",
  "vendor": "Camstreamer s.r.o.",
  "required_camscripter_version": "1.2.3",
  "ui_link": "/local/camscripter/package/clockAnalog/index.html"
}]

Set or get settings for application

This is usually used from package UI. Settings should be in JSON format. JSON is stored in /package_name/localData/settings.json and is preserved while the package upgrades. SIGINT signal is sent to package if new settings are made.

http://IPADDR[:PORT]/local/camscripter/package/settings.cgi

where

IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5

Parameters:

PACKAGE_NAME is name of package.
ACTION specify action ( set / get ).

HTTP Proxy

Use the HTTP proxy if the package needs an API. CamScripter App forwards any http(s) request coming to the default HTTP server on the camera as http(s)://IPADDR[:PORT]/local/camscripter/proxy/PACKAGE_NAME/* to http(s)://127.0.0.1:PORT2/* The PORT2 is a unique number defined as an environment variable. The default HTTP server on the camera requires HTTP authorization (basic or digest).

where

IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5
PACKAGE_NAME is the name of the package. E.g. clock

Redirected to package http port.

http://IPADDR[:PORT]/local/camscripter/proxy/PACKAGE_NAME/*

Example:

http://192.168.1.5/local/camscripter/proxy/clock/test.cgi

Redirected to package http public port.

http://IPADDR[:PORT]/local/camscripter/proxy_public/PACKAGE_NAME/*

/proxy.cgi

Any HTTP(S) request is forwarded to the target camera. You can use it for any VAPIX command.

The proxy implementation allows you to have a fully functional user interface even if you access the camera of the device with the script from a non-local IP address.

HTTP command:

http://IPADDR[:PORT]/local/camscripter/proxy.cgi

where
IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5:80

Headers of the HTTP command:

x-target-camera-protocol - target camera protocol: http/https/https_insecure
x-target-camera-ip - target camera IP address
x-target-camera-port- target camera port
x-target-camera-path - target camera path
x-target-camera-user - target camera username
x-target-camera-pass - target camera password

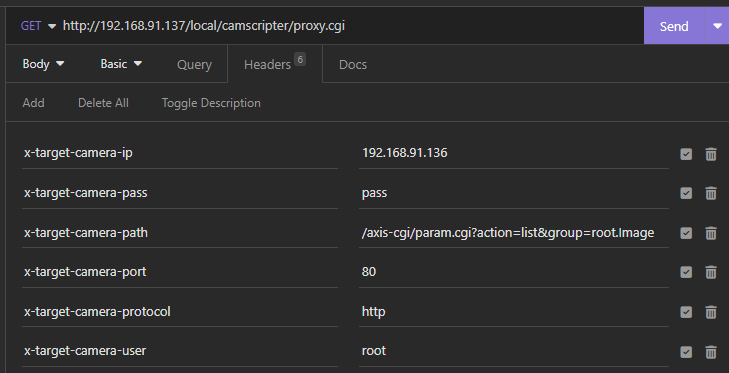

Example:

HTTP VAPIX request for view areas on set camera.

http://IPADDR[:PORT]/axis-cgi/param.cgi?action=list&group=root.Image

Access to static html

Access to path /package_name/html/

http://IPADDR[:PORT]/local/camscripter/package/PACKAGE_NAME/*

where

IPADDR[:PORT] is an IP address:port of the camera. E.g. 192.168.1.5
PACKAGE_NAME is the name of the package. E.g. clock

Search for cameras on the local network

With this endpoint, you can scan the local network, display the available cameras to the user, and let the user select a camera via the user interface and automatically fill in the desired IP address. The solution uses mDNS protocol and mDNS camera names.

/network_camera_list.cgi

Response:

{
  "camera_list": [{
    "name": "AXIS A8207-VE - ACCC8EBFD3E5",
    "ip": "192.168.91.211"
  }, {
    "name": "AXIS Demographic Identifier - AXIS Q3515 - ACCC8EBE6D6F",
    "ip": "192.168.91.208"
  }]
}
