About the project
Enhance your warehouse operations with our cutting-edge Video CheckPoint system, specifically designed for warehouses, retail, e-commerce operators, shipping companies and as an addition to any process where barcode scanning is used. This innovative solution simplifies the process of managing and tracking your goods.
Technical Solution

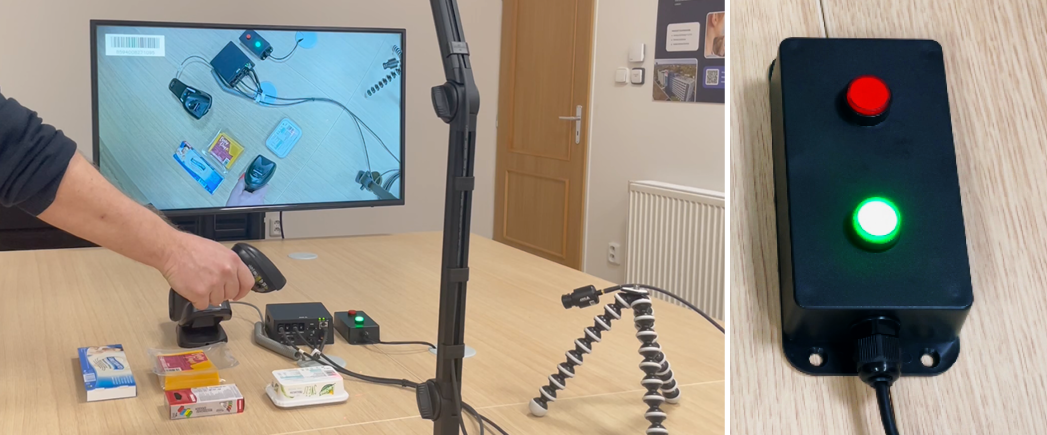

You‘ll need just three key components: a barcode reader, an Axis multi-sensor camera (in this case we use AXIS F9114 Main Unit paired with two AXIS F2115-R Varifocal Sensors), and our CamStreamer apps.
Here‘s how it works:

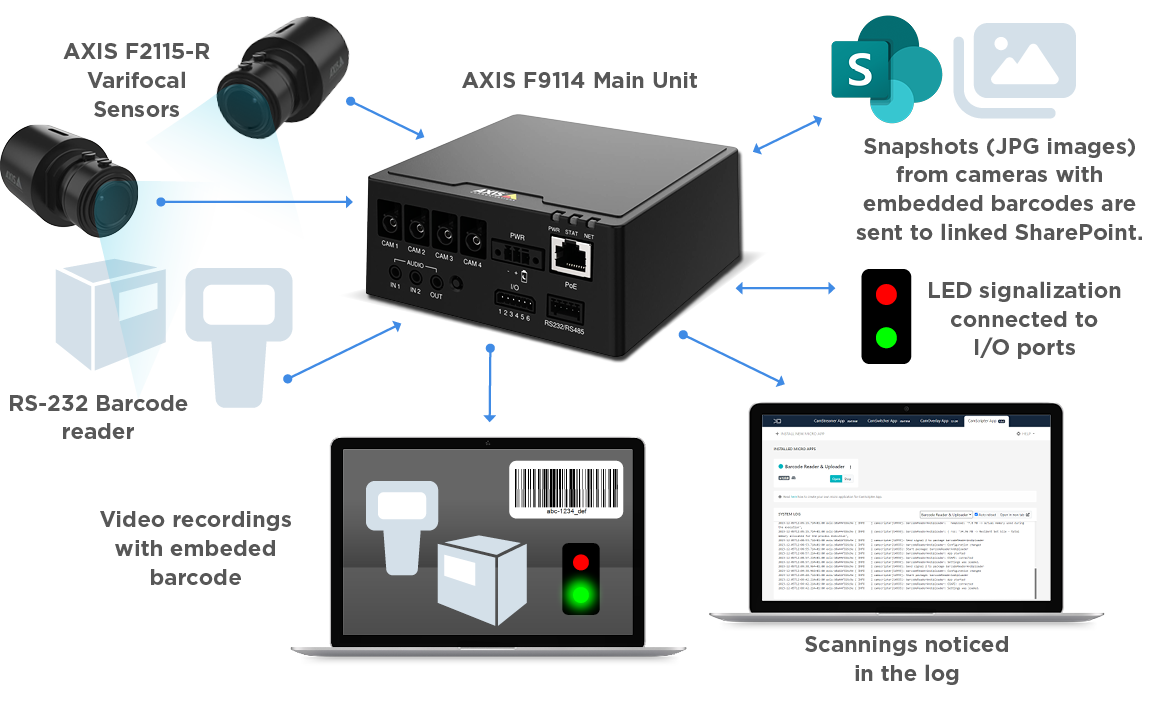

When you scan the barcode with the reader, snapshots from all cameras are automatically uploaded to your SharePoint site with the appropriate date and time. Uploaded JPG images contain embedded scanned barcodes. If the upload fails, for example, due to a bad connection, you will know about it immediately, thanks to the red light. If everything goes well, the green light will come on. At the same time, note is recorded in the log. For a double check, there are also camera recordings, where you can see the captured barcode displayed as a graphic overlay directly in the video. Look at the structure diagram on the following page for a better idea.

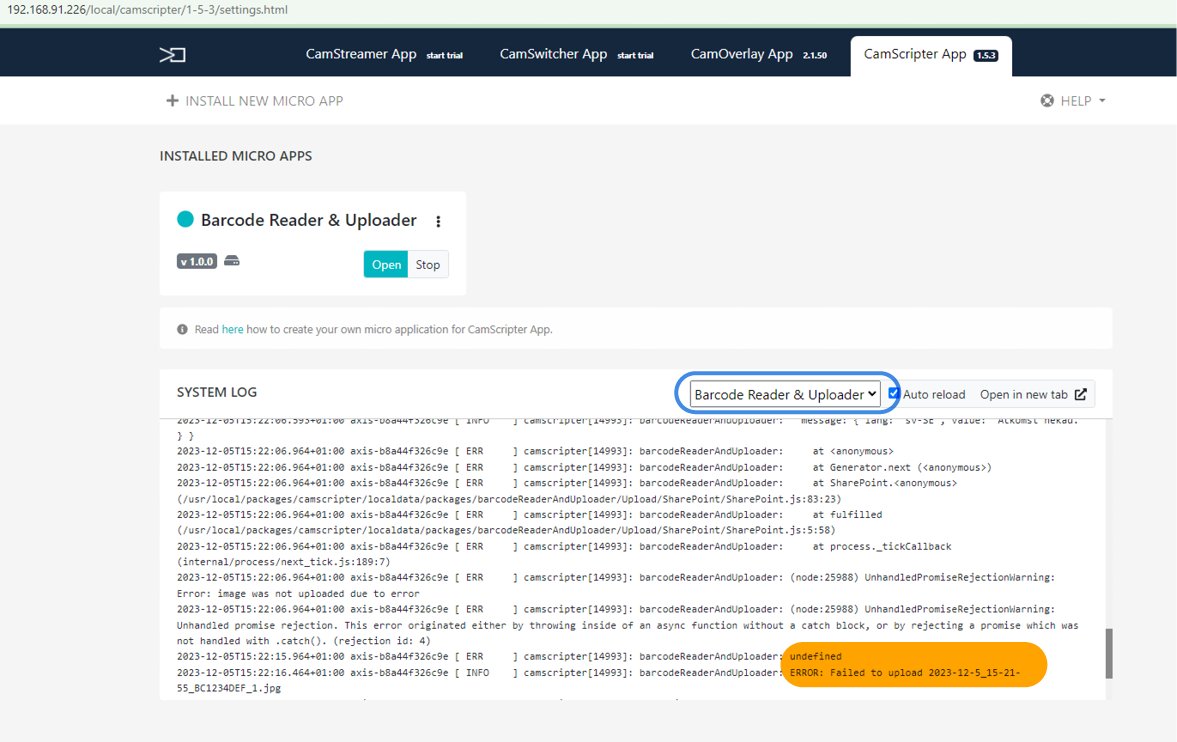

Here's what notices in the log look like. To see it, you need to pick the basic value "Barcode reader & Uploader" as a type of log information. Please notice also the error note in the bottom right.
Result
The process is straightforward and efficient!
Barcode Scanning ✔ |
Snapshots from all connected sensors / cameras (in this case can be from 1 to 4 sensors / cameras) are instantly captured as soon as a barcode is scanned. |
|
Automated Uploads ✔ |
These images are then automatically uploaded to your SharePoint server, tagged with the relevant date and time for easy tracking. |
|
Real-Time Feedback ✔ |
If there‘s an issue with the upload (like a bad connection), a red light indicator alerts you immediately. A green light indicates a successful upload. |
|
Comprehensive Logging ✔ |
Alongside these visual cues, every action is logged for record-keeping, ensuring a robust tracking system. |
|
Double Verification ✔ |
For added security, the system also records camera footage, displaying the scanned barcode as an overlay in the video, allowing for a secondary verification process. |
|
Light Signalization ✔ |
Our system features a unique light signalization for immediate status updates - a short green blink confirms the scan, and a longer light indicates a successful upload. A red light signifies any upload issues. |
|
Error Handling and Data Organization ✔ |

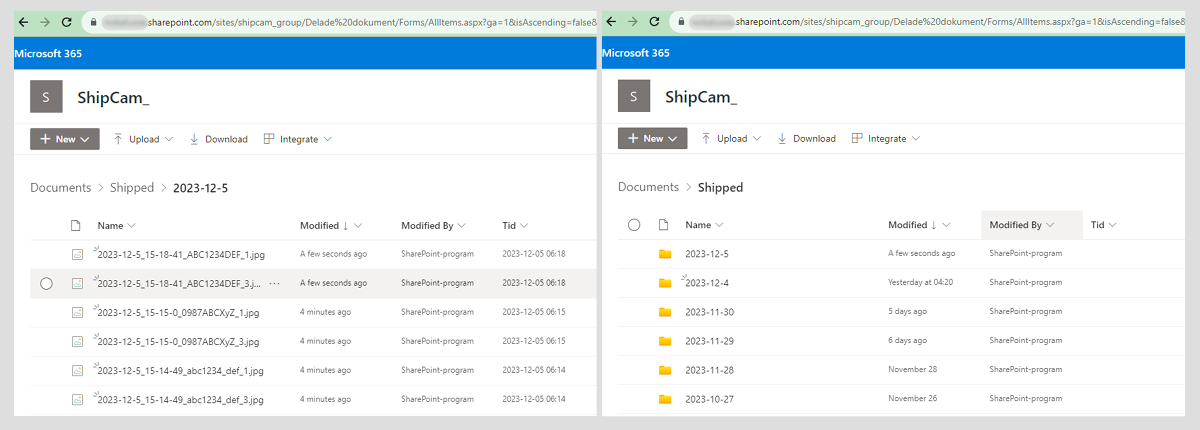

In case of an upload failure, the microapp‘s UI displays an error message. Successfully uploaded data is methodically saved in SharePoint, labeled with a date and code value, and sorted into date-named folders for easy access. |
|
Surveillance
|
This system isn‘t just about visual monitoring; it‘s a smart application of Axis cameras for intelligent, integrated surveillance, enhancing your security and operational efficiency. |
List of suplies
|
Hardware: |
|
|
|
RS-232 Barcode reader |
|
|
LED signalization connected to I/O ports |
|
Software: |
|
|
|
|
|
|
Micro-app (Node.js) script for the CamScripter App |
Discover the power of this integration and explore how it can revolutionize your surveillance and goods-tracking processes.
We can efficiently extend this solution to accommodate extra requirements for data validation or destinations other than SharePoint ( for e.g., Dropbox, Google Drive etc.) and any different process with photo confirmation (we are not limited to barcode scanning). Also, LED signalizations can be replaced/extended with other output devices, for example, beeping. We can offer an in-house, industry-grade box with LEDs as a standard solution component for visual indication. For more details, visit our website, browse our Integration gallery for other use cases, and contact us to integrate this advanced solution into your system. Learn more at CamStreamer.com.
