Showing scoreboard directly in a video feed from Axis camera. Data are fetched from own score system and shown in the video.
|
Content: |
External links:
|
About the project
This time we’ll show you an interesting example of integration made by one of our customers, who integrated a scoreboard with the current results of a sports match directly into a live video stream and created a clever solution for controlling their YouTube live streams.
Technical Solution
Our client – the Eagles Prague baseball & softball club – used our CamScripter App and CamOverlay App to create this smart solution. At a sports event, someone with a tablet or a mobile phone is connected to their scoring service and enters their current score. This is the source of data. Simple JavaScript code takes score data from their own score system and lets the CamScripter App generate the scoreboard graphics. Then, using the CamOverlay App, these scores are inserted into the live video stream. It sounds complicated, but it’s very easy as everything runs automatically inside the camera.
The next step in this solution was to connect a button to the camera that starts and stops camera streams to YouTube. Again, no other hardware is necessary – only a button connected directly to the camera's I/O port. This is controlled by the “triggering” function in our CamStreamer App, which provides the live stream to YouTube. By combining this with a microphone, which is also directly connected to the camera, a fully automated solution for streaming sports events was created.
The result
Would you like to see a full record of the match? Watch on YouTube of the Eagles club.
What do you need?
|
Hardware: |
|
|
|
|
|
|
|
|
Software: |
|
|
|
|
|
|
CamStreamer App |
AXIS Q3536-LVE Dome Camera
- Outstanding image quality in 4 MP
- Analytics with deep learning
- Available with wide or telelens
- IR-shielded dome to prevent reflections
- Metal casing and built-in cybersecurity feature
- MSRP $1199

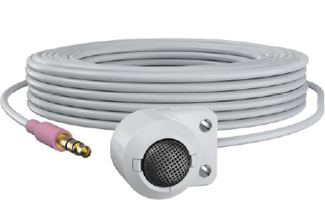

AXIS T8351 Mk II Microphone
- Outstanding audio with low noise-level
- Discreet and compact analog microphone
- Hemispherical
- Flexible installation
Hardware button
- Read on How to set up your own HW button in our support zone.
CamStreamer apps
- CamStreamer App is an In-camera app streams live video directly from Axis camera to YouTube, Facebook, and many other streaming platforms. Easy setup via any browser, no additional HW is needed.
- CamOverlay App is an in-camera app that generates dynamic graphic overlays and displays them directly in the Axis camera’s video stream.
- CamScripter App allows to running of micro apps (Node.js script) inside the Axis camera to fetch data from an external source.
- MSRP $799
TIP: CamSwitcher App
- Allows you to switch between view areas or multiple cameras.
- There are no additional costs for you, $799 is the price of a bundle of all 4 CamStreamer apps.
Setup guide
Tip: if you want to turn ON the light when streaming is active and turn it OFF if it is deactivated, you can do it by following the steps:
a) buy button with LED diode or diode alone for 12V DC
b) connect LED to DC Output of the camera and Digital output (marked in green on the picture below, note that the amount of ports differs by the model of the camera)
Once it is connected, you have to set Event (System-> Events) within the Axis user interface. This event will turn on the light once the circuit with the button is closed and again off once it is opened.
Check out the demo video here.
