How to use CamStreamer App 1.6.0

Updated

Stream configuration

Set up your stream using the simple user interface and the parameters below.
Note: Video quality is taken directly from the camera. If you want to change it, please adjust the video settings in the camera itself.

If the camera does not have a 'camstreamer' user, create one with viewer permissions and use its password in the settings.



PARAMETERS

  • Enable - turns live streaming on or off
  • Media Server URL - streaming address of your platform, including the stream key. If you also want to use a backup server, set it in the following format.
    rtmp://a.rtmp.youtube.com/live2/wxv4-kzzz-3j1r-xxxx-xxxx|rtmp://b.rtmp.youtube.com/live2?backup=1/wxv4-kzzz-3j1r-xxxx-xxxx
  • Audio Source – available options:
    No audio - none
    Internal microphone - default, set audio=1 to Vapix RTSP parameters
    Silent audio track – our internal silent audio file, used to enable streaming on platforms like YouTube and Facebook that require an audio track
    file: /usr/local/packages/netrexcamstreamer/tools/silence.mka
    Audio from external RTSP source
    url: rtsp://root:password@IPaddress/axis-media/media.amp?audio=1&video=0
  • Audio-video synchronization (ms) – Use this option to synchronize external audio with the video. The offset is given in milliseconds and can be positive or negative.
  • Vapix RTSP parameters - here you can set custom RTSP parameters, if you use internal microphone, set there audio=1
  • User Password – password for the root user used to fetch the RTSP stream locally



How to run streaming on YouTube or Facebook

Stream to YouTube

  • Go to the YouTube homepage
  • In the top right corner, click on "Create" (camera icon with a "+").
  • Select "Go live".

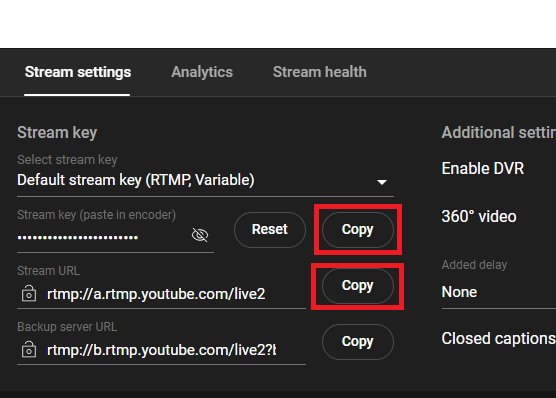

  • Copy the Stream URL and Stream key.
  • Enter them into the streaming URL in the following format:

    rtmp://a.rtmp.youtube.com/live2/yourStreamKey

Stream to Facebook

  • Go to Facebook Live Producer (https://www.facebook.com/live/producer).
  • Click on "Go Live".
  • Select "Streaming Software".
  • Copy the Stream Key.
  • Enter the following streaming URL into your encoder:
    rtmp://live-api.facebook.com:80/rtmp/yourStreamKey
  • Enable streaming from CamStreamer App
  • Go back to Facebook Live Producer and click "Go Live" to start broadcasting.
